Watermark

Business Background

Add a watermark to your documents.

Titan Solution

You can add a watermark to an image using Titan Flow.

How to Guide

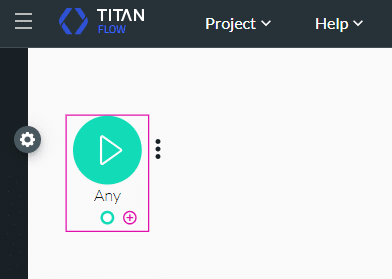

1. Click the + icon to add a node. The Add Node screen opens.

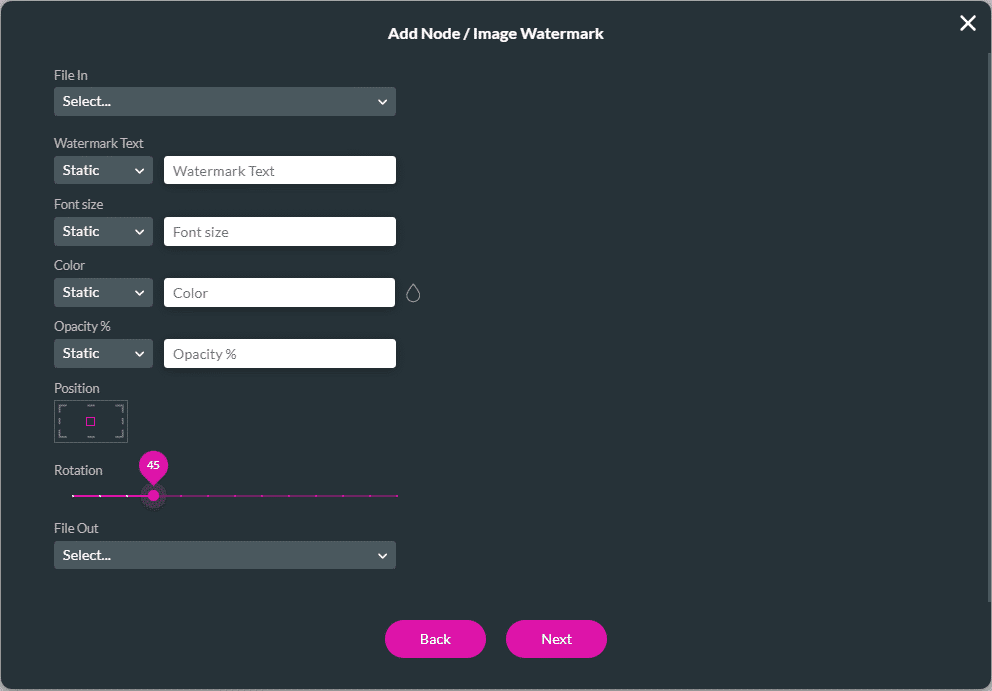

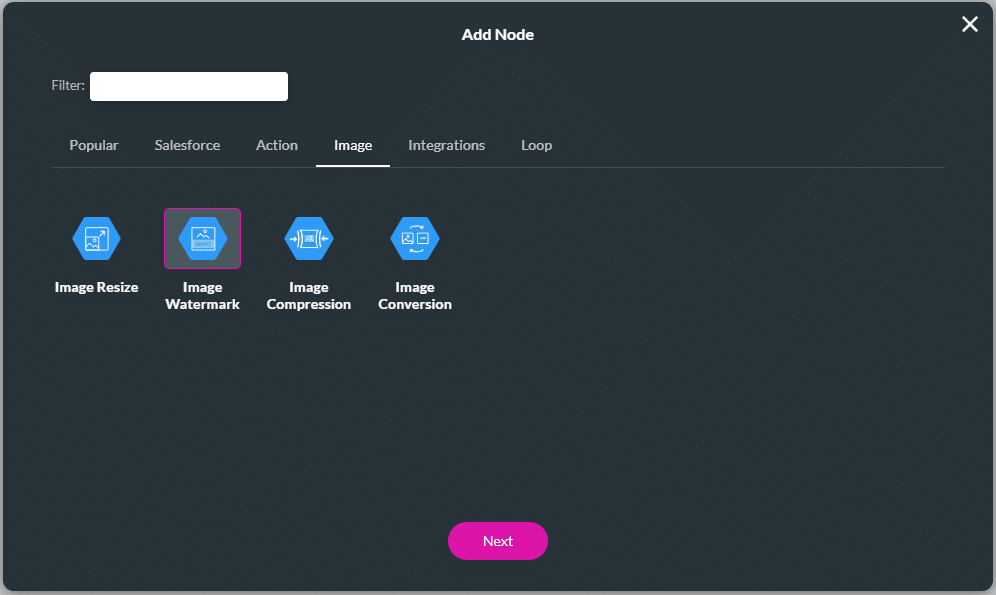

2. Under Images, select the Watermark option and click the Next button. The Add Node/Image Watermark screen opens.

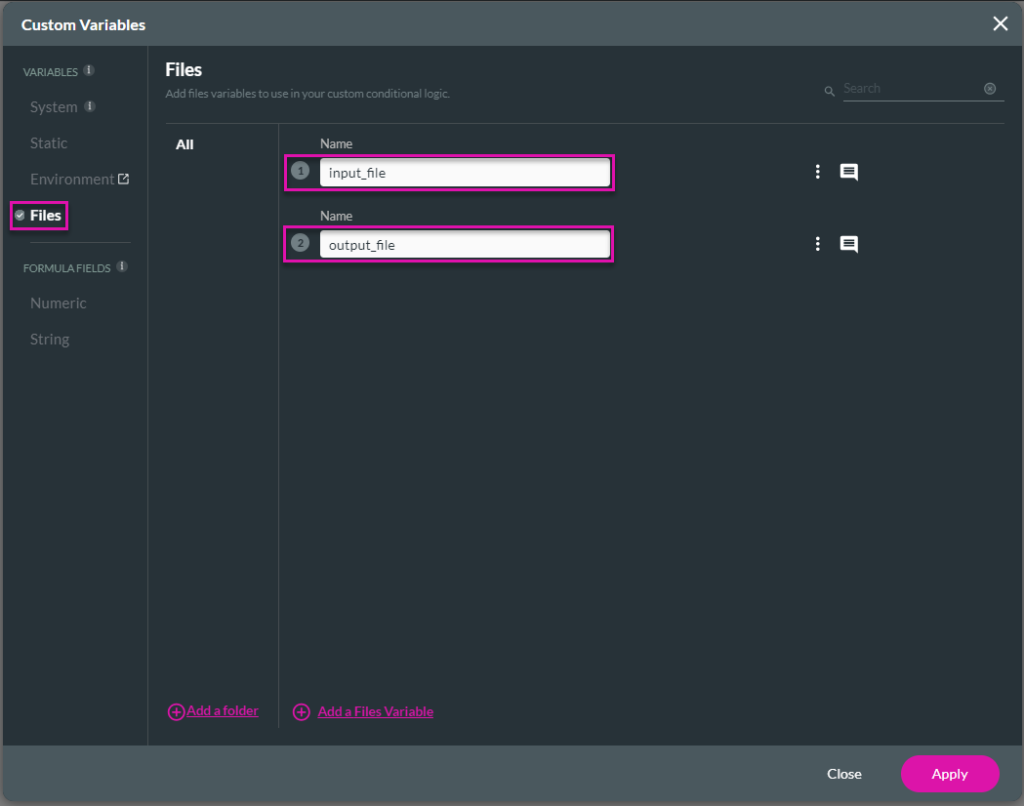

3. Use the drop-down list to select the file in variable.
4. Use the Watermark Text drop-down list to select one of the options:
   • Static: Type a static width in the field.
   • Field: Use the drop-down list to select a variable.
5. Use the Font Size drop-down list to select one of the options:
   • Static: Type a static width in the field.
   • Field: Use the drop-down list to select a variable.
6. Use the Color drop-down list to select one of the options:
   • Static: Type a static width in the field.
   • Field: Use the drop-down list to select a variable.
7. Use the Opacity drop-down list to select one of the options:
   • Static: Type a static width in the field.
   • Field: Use the drop-down list to select a variable.
8. Click in the block to select the position.
9. Use the Rotation slider to set the rotation.
10. Use the drop-down list to select the file out variable.

11. Click the Next button.
12. Type a tag name if necessary and click the Insert button. The node is added.
