Edit Mapping for Power Tables

Business Background

Change the mapping of the power table after you have added it to the Web project.

How to Guide

The Edit Mapping option is available for power table elements.

  1. Click the + icon to open the list of elements.
  2. Select the Table option from the list.
  3. Click-and-drag the Power Table element to the canvas.

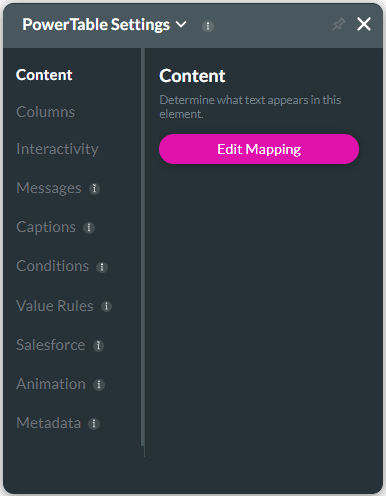

  4. Click the settings Gear icon. The Power Table Settings screen opens.
  5. Click the Edit Mapping button.

Edit Mapping

Edit Mapping

Note:

This is the same screen as the Mapping screen when you added the power table to the canvas. It shows the column/s that you added to the power table. It lets you change the mapping that you configured initially.

The Salesforce Configuration screen opens on the Mapping step.

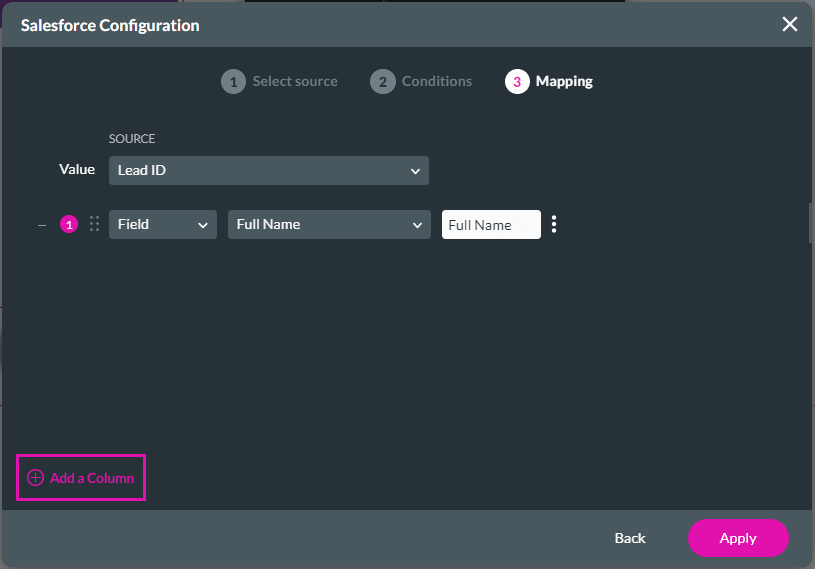

Salesforce Configuration screen - Mapping step

Salesforce Configuration screen – Mapping step
  1. Use the drop-down list to change the initial column, or select the Add a Column option to add more columns.
  1. Field drop-down option
  2. Static drop-down option
  3. Index drop-down option
  1. Icon drop-down option
  2. Button drop-down option
  3. Input drop-down option

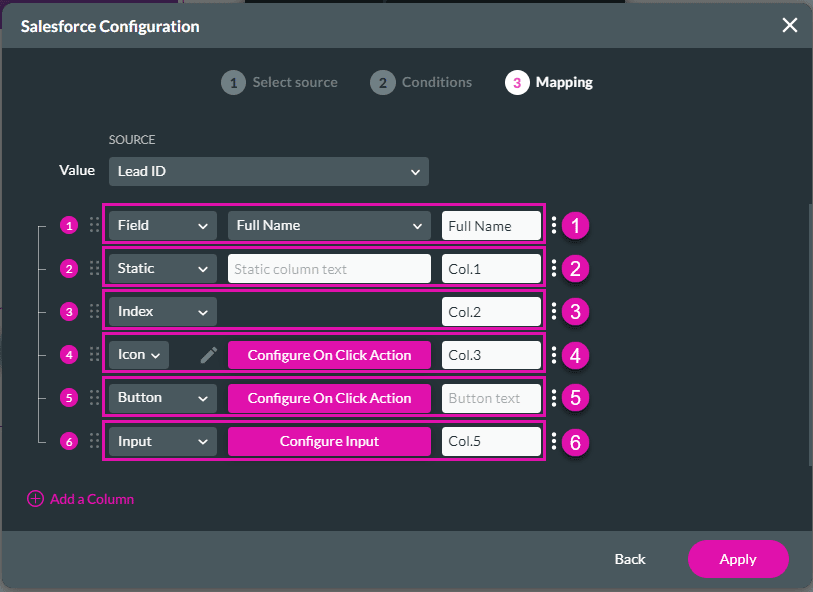

Column options

Column options

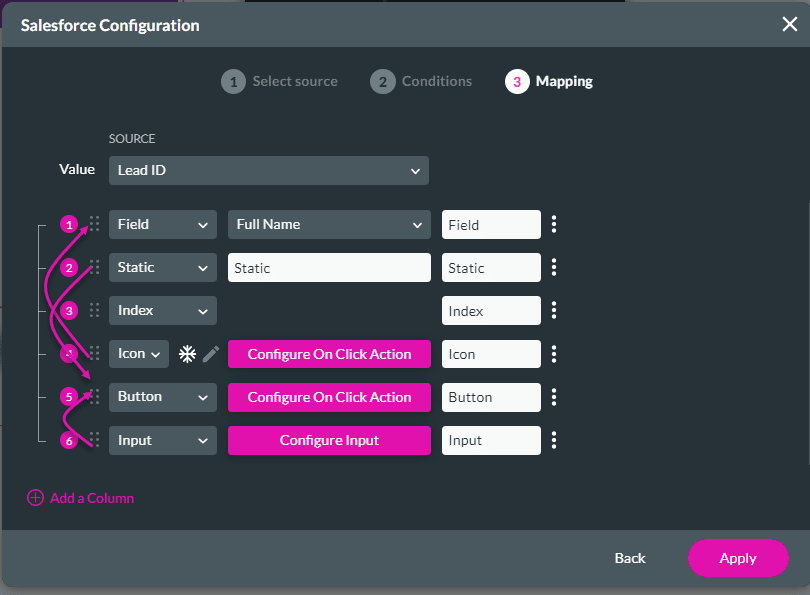

  1. Make the changes as necessary. You can drag-and-drop the columns to change the order.

  1. Click the Apply button.
  2. Save and Preview the project.

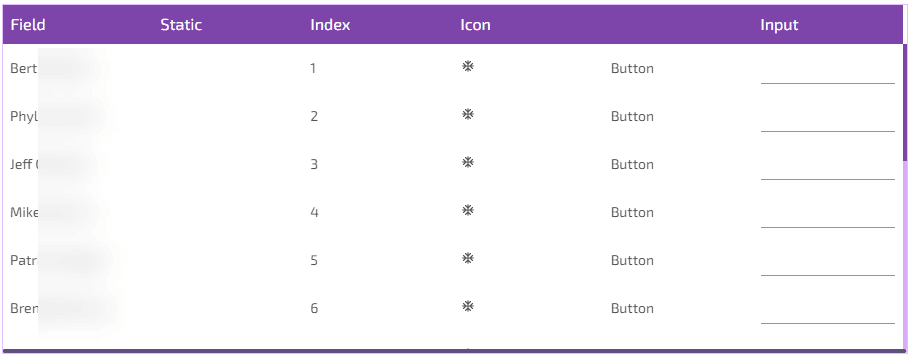

The power table has the columns as you configured them.

Example
